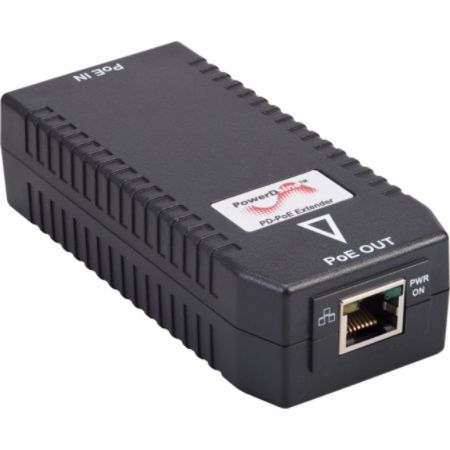

Microsemi 1-Port, Extends PoE Range by Additional 100m, 802.3af /802.3at Output Power Item # 4029624

 |
Microsemi 1-Port, Extends PoE Range by Additional 100m, 802.3af /802.3at Output Power
$ 166 .99 / each $166.99
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    Microsemi's PoE Extender is a cost effective way to extend the Ethernet network range beyond 100 m, delivering both data and power to network devices such as WLAN Access Points and network cameras up to a distance of 200 m while complying with IEEE PoE and data standards.The PoE Extender supports 10/100/1000 Mbps data rates and delivers 802.3at power levels, up to 25.5 W. The PoE Extender does not require local power and is powered via the PoE input.

    Back To Top

    Product Details

    Item # 4029624
    Manufacturer # DN2083
    Power Over Ethernet (PoE) PoE
    weight 3.53 oz
    brand name Microsemi
    height 1.2 in
    Additional Information Extends Power over Ethernet Installations to 200 Meters; Connectors: Shielded RJ-45 female socket; Pass Through Data Rates: 10/100/1000 Mbps; Provides 802.3af power levels when powered by any 802.3at source; Provides 802.3at power levels when powered by PowerDsine 95xx Midspans; Extenders can be cascaded to reach up to 500m; Cost effective installation - no need for local power; Plug and play installation - no configuration needed
    Certifications & Standards UL/cUL Per EN 60950; GS Mark Per EN 60950; FCC Part 15, Class B; EN 55022 Class B (Emissions); EN 55024 (Immunity); VCCI; IEEE802.3at (PoE); CE
    quantity 1
    width 4.3 in
    Product Line PowerDsine
    depth 2 in
    Product Name PowerDsine 1-port Network Extender
    manufacturer Microsemi Corporation
    warranty length 1-year limited
    model name PD-PoE-Extender
